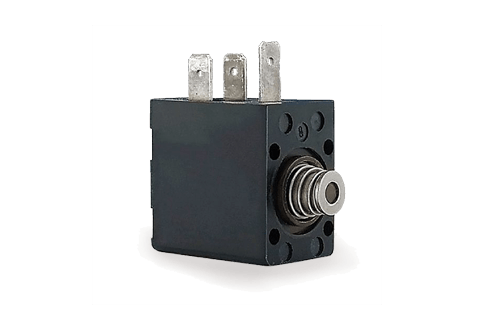

Valve Solenoid type X BK



The armature of the valve solenoids type X BK is seated in a plastic guide, thus the valve drive becomes insensitive to dry run. For design reasons, the pressure tight armature space is integrated in the solenoid body. Connection to the valve body is realised with through bolts. When replacing the solenoid, the pneumatic circuit is opened.



Sizes (width): 22 mm, 32 mm
Armature space pressure tight up to max. 30 bar static pressure
Nominal working pressure: up to 15 bar
Stroke: 0.6 mm – 0.8 mm
Magnetic force (without spring): 4 N – 7.5 N

  • Armature with spring-supported sealing nipples on both ends
  • Armature guided in plastic tube
  • Suitable for dry operation
  • Function: 3/2 NC, 3/2 NO, 2/2 NC
  • Media: compressed air and other gaseous and fluid neutral media
  • Electrical connection via connector plug
  • Fastening with 4 screws
  • Protection class: IP54 – IP65
  • Voltage type: direct current, DC or alternative current, AC
