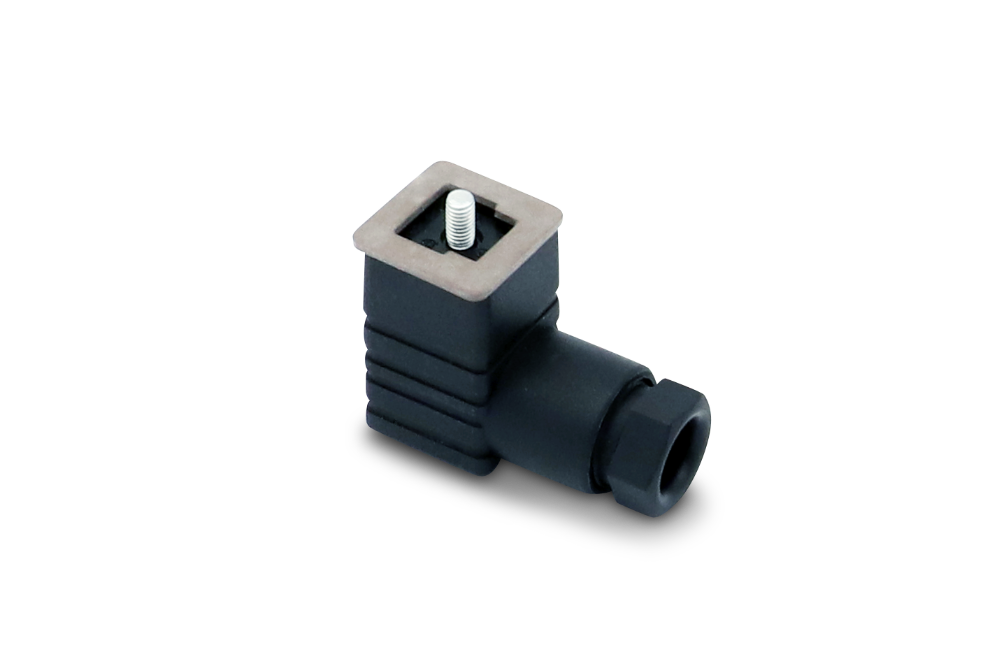

Plug Connector type Z KC X 207 B01

Design to: DIN EN 175301-803-C
Square design
Number of plug contacts: 2 + protective contact
Rated current: 6 A
Reference voltage: 250 V AC/DC

  • Size cable gland : PG 7
  • Cable diameter: 4,5 mm – 6 mm
  • Max. cross section lead ends: 3 x 0,75 mm2
  • Cable entry may be rotated by rotating the contact carrier in the housing
  • Protection class: IP65
  • Temperature range: -40 °C ... 125°C
