Identified: The challenge in mobile hydraulics

With the increasing automation of mobile machinery – whether construction machinery, agricultural machinery or municipal vehicles – the demands on hydraulic control systems are growing. Today, electromagnetically operated hydraulic valves must not only work reliably, but also show proportional behaviour in order to precisely regulate the oil flow. The aim is to control hydraulic components such as cylinders, motors or pumps with great sensitivity.



Proven concept: hydraulic pilot control as a solution for efficiency and flexibility

Here, a small valve regulates the pressure at the valve piston, which in turn controls the oil flow. This allows valves with high flow rates to be implemented cost-effectively.

The result:

• Precise control for different applications.
• Cost efficiency despite increasing performance requirements.
• Future-proof technology for mobile and stationary hydraulic applications.



Modular: The VR030 modular system from Magnet-Schultz

Magnet-Schultz offers the VR030 modular system to flexibly meet these requirements.

What makes our VR030 valve series special?

• Extensive range of variants: With flow rates from 4 to 10 l/min, Deutsch or AMP plug variants, parallel or axial, manual emergency operation optional.
• Flexibility in the product portfolio: Whether for construction machinery, agricultural machinery or commercial vehicles – we have the right solution.
• Modular design: Put together exactly the solution you need by selecting from the individual options.

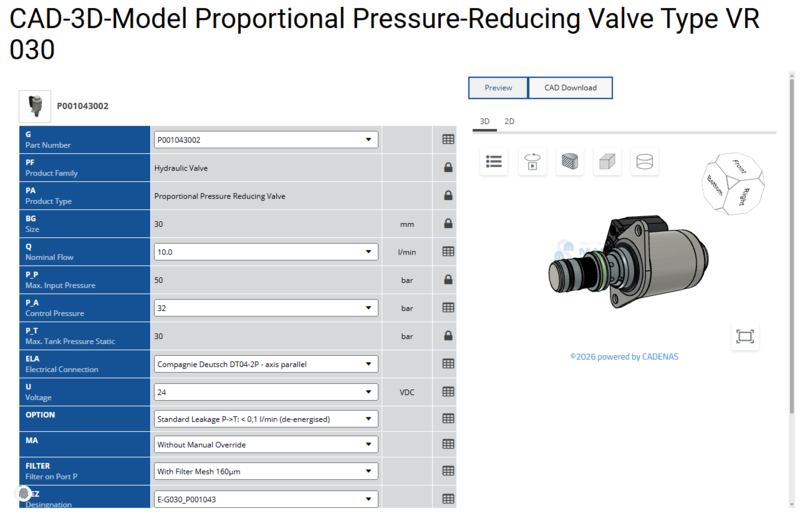

Our configurator allows you to select your solution from our extensive VR030 modular system and generate the CAD 3D data in your preferred data format. You can download the data directly:

With the VR030 modular system, Magnet-Schultz provides a modular platform that combines efficiency, flexibility and cost advantages for you – offering a future-proof solution for the precise control of hydraulic machines.

True to the motto: A broad range of components, maximum variety – the right solution for every application.



→ Click here for the VR030 product portfolio overview and the configurator for your 3D data: Proportional valves for hydraulics
