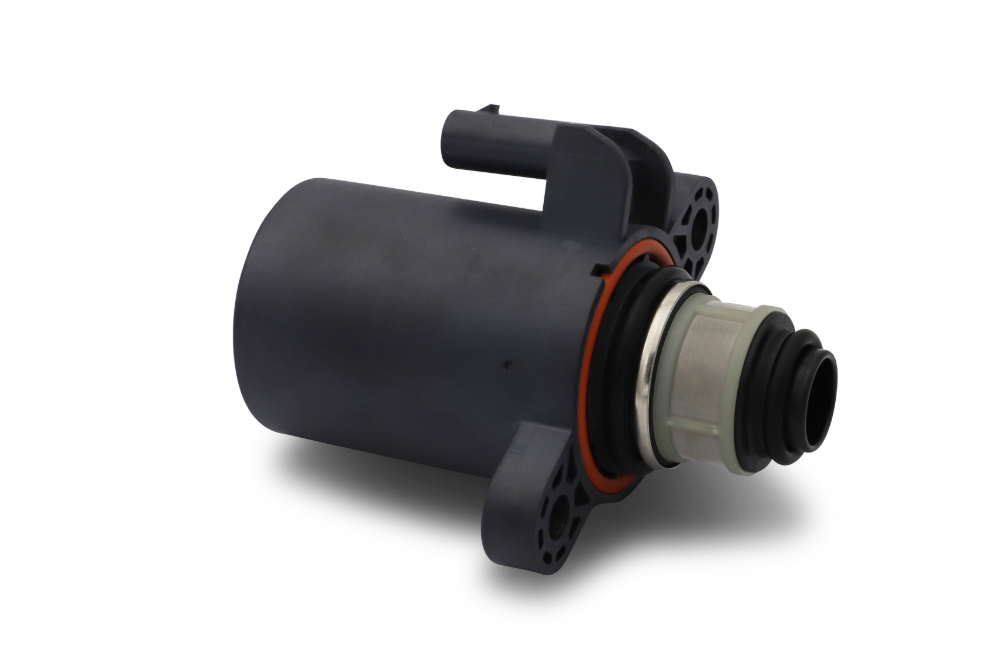

Safety shut-off valve Type G PC S 040



In mobile fuel cell applications, a safety shut-off valve for medium pressure ranges is provided for within the storage system.

By means of a patent pilot system, we achieve high flows at very low external and internal leakages. Disrupting shock pressures are avoided by two-stage opening.



Size (Ø): 40 mm
Function: 2/2 NC, pilot controlled
Medium: hydrogen H2

  • Nominal working pressure (NWP): 0 ... 21 bar
  • Maximum pressure (MAWP): 25 bar
  • Nominal width: 8 mm
  • Central fastening or fl ange mounting
  • Type of voltage: DC, PWM
  • Connector TE MCP 2,8 mm
  • Protection class: IP6K9K
  • Testing according to EC79
  • Options:
    • Various electrical plug connections
    • ATEX version for stationary applications
    • Customer-specific mechanical interfaces
    • Version für natural gas (CNG)

This device is a basic device for customer-specific developments and versions.

Datasheet, sample taking and variants upon request.
